PCB assembly quality depends not only on good soldering, but also on proper inspection and testing. Even a well-designed board can fail if components are misplaced, solder joints are weak, polarity is wrong, or hidden BGA defects are not detected.
For prototypes and production PCBAs, different inspection methods help identify different types of issues. Understanding AOI, X-ray inspection, ICT, flying probe testing, and functional testing helps you choose the right quality control plan for your project.
Why PCBA Testing Matters
PCB assembly involves many steps: solder paste printing, component placement, reflow soldering, through-hole assembly, cleaning, inspection, and testing. Small mistakes can create electrical failures, intermittent problems, or long-term reliability risks.
Testing helps catch defects before the product reaches the customer. It also provides feedback for improving assembly yield, component placement, stencil design, soldering profile, and production process control.
Visual Inspection

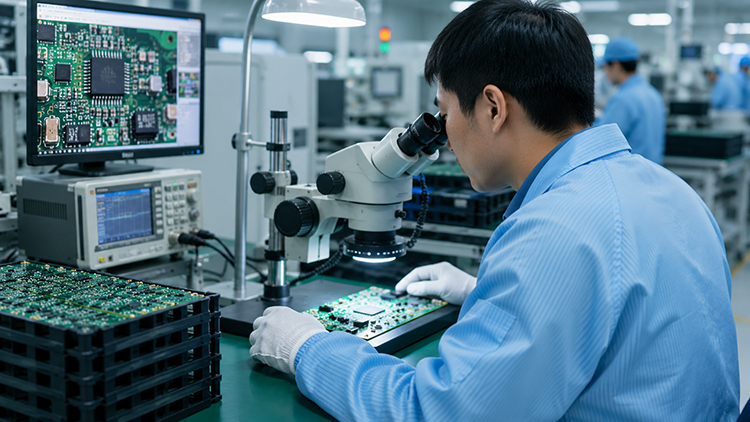

Visual inspection is the simplest form of PCBA quality control. Operators check component placement, orientation, missing parts, obvious solder bridges, damaged components, and general workmanship.
Although visual inspection is useful, it cannot reliably detect hidden solder issues under BGA packages or small defects on dense SMT boards. It is usually combined with other inspection methods.
AOI: Automated Optical Inspection
AOI uses cameras and lighting to inspect assembled boards automatically. It can detect missing components, wrong orientation, solder bridges, insufficient solder, skewed parts, polarity errors, and some solder joint problems.
AOI is widely used for SMT assembly because it is fast, repeatable, and effective for high-volume inspection. It is especially useful after reflow soldering, before boards move to the next production step.
X-Ray Inspection for Hidden Solder Joints
X-ray inspection is important for components whose solder joints are hidden, such as BGA, QFN, LGA, and some bottom-terminated packages. AOI cannot see under these packages, but X-ray can reveal solder voids, bridges, insufficient solder, and alignment problems.
If your PCBA includes BGA or other hidden-joint components, X-ray inspection is often recommended, especially for prototypes, high-reliability products, and production validation.
ICT and Flying Probe Testing
ICT, or in-circuit testing, checks electrical connections and component values through a test fixture. It can find opens, shorts, wrong resistor or capacitor values, and some assembly defects. ICT is efficient for production but usually requires a custom fixture.
Flying probe testing uses movable test probes instead of a fixed fixture. It is more flexible and suitable for prototypes or small batches, although it is slower than fixture-based ICT.
Functional Testing
Functional testing checks whether the assembled board works as intended in real operating conditions. This may include powering the board, loading firmware, checking communication interfaces, measuring outputs, testing sensors, or running a customer-provided test procedure.
Functional testing is often the most meaningful test for product performance, but it requires clear test instructions, test points, fixtures, firmware, and pass/fail criteria from the customer.
How to Choose the Right Testing Plan
- Use visual inspection and AOI for general SMT assembly quality control.
- Use X-ray inspection for BGA, QFN, LGA, and hidden solder joints.
- Use flying probe testing for prototypes and small batches.
- Use ICT for larger production runs when a fixture is justified.
- Use functional testing when product behavior must be verified before shipment.
- Provide clear test requirements, firmware, cables, and acceptance criteria when needed.
Design for Testability
Testing is easier when the PCB is designed with testability in mind. Add accessible test points for power rails, ground, programming interfaces, communication signals, and important nets. Leave enough spacing for probes and fixtures.
For production orders, early planning of test points and fixtures can reduce test time, improve fault diagnosis, and make manufacturing more reliable.
Build Reliable PCB Assemblies
PCBA testing is not a single step. It is a quality strategy that combines inspection, electrical testing, process control, and customer-specific validation. The right testing plan depends on product complexity, volume, reliability requirements, and budget.
EazyPCB supports PCB fabrication and assembly for prototypes and production runs. If your project needs AOI, X-ray inspection, flying probe, ICT, or functional testing, our team can help review the best quality control approach before assembly begins.
